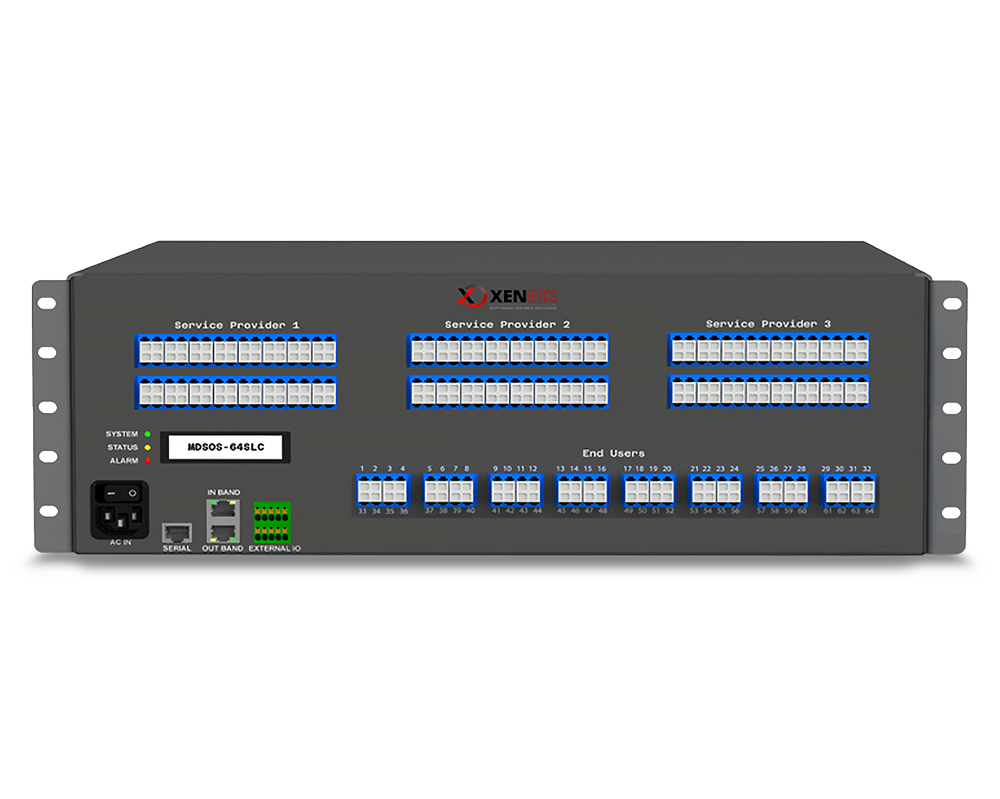

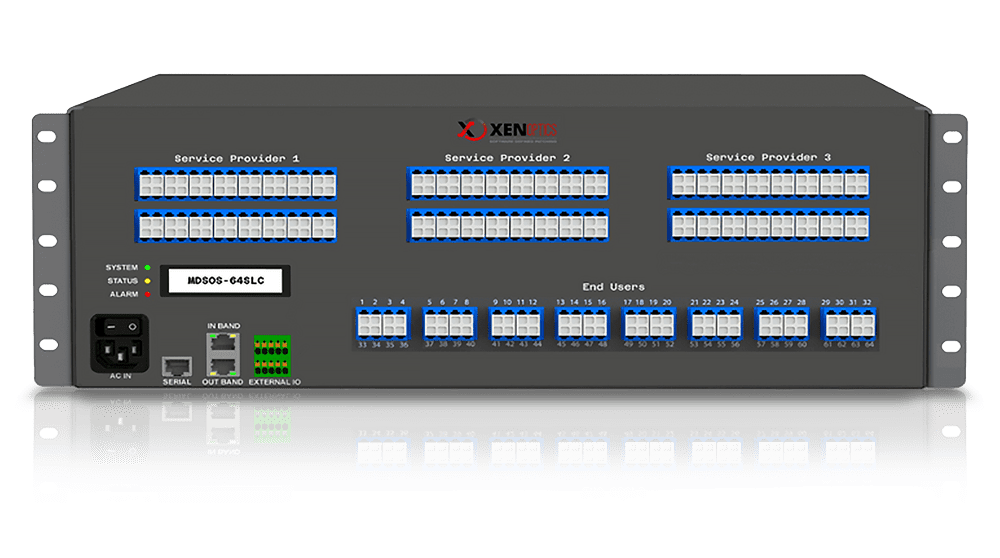

The MSOS platform is purpose-built for multi-dwelling units (MDUs) and Fiber-to-the-Building (FTTB) deployments, solving the complexity of managing multiple tenants and service providers in space-constrained environments. Powered by XENOptics’ robotic 3D-OS switching, MSOS enables fully remote, dynamic fiber provisioning — without technician visits.
With support for up to 64 tenants and 3 service providers, MSOS empowers open-access models with unmatched agility and lowers total operational costs dramatically.
Feature
Specification
Switching Matrix
64 x 3 optical cross-connect
Reconfiguration Time
< 50 seconds
Insertion Loss
< 0.8 dB
Return Loss
> -65 dB
Crosstalk
> -70 dB
Input Wavelength Range
1260–1630 nm
Power Input
110–220V AC / Optional 24V DC
Operating Temperature
-40°C to +45°C (Transport: up to +70°C)
Dimensions (HxWxD)
133mm x 444mm x 480mm
Weight
10 kg
Interfaces
RS-232, SNMP, Telnet, SSH, REST API, OTDR in/out
Compliance
NEBS 3, ETSI 300019, EN/IEC safety and EMC standards
Control your MSOS deployment with:
All MSOS operations are fully remote — from switching to cleaning — enabling true lights-out operations.
